The Tessellation Pipeline

Introduction

Tessellation

• Connect small pieces without gaps and overlapping to form a single surface.
• Means of representing a non-linear mathematical surface.
• NURBS (non-uniform rational basis splines) : generalized mathematical from for smooth curved surfaces.
• Subdivision surface; SubD
  • Recursively divided the triangle until the ideal surface is no longer well expressed.
  • Possible to approximate a smooth higher-order surface with a very large number of small triangles.



Why is tessellation useful

• The mathematical definition of a surface is sufficient with the coefficients, input parameters for the function, reducing memory  storage and I/O bandwidth.
• Scalability : able to dynamically adjust the level of detail of the surface based on fixed inputs.
• One code path can be applied to various configurations.
• Should be noted that it may increase other types of costs, such as evaluating functions defining higher-order surfaces in real time.



Tessellation and the Direct3D Pipeline

Input Assembler

• Primitive topology configured in the device : D3D11_PRIMITIVE_TOPOLOGY_n_CONTROL_POINT_PATCHLIST (n : 1~32)
• Read $n$ indexes from the index buffer.
• Select vertices corresponding to the indices from the vertex buffer.



Vertex Shader

• The general use in tessellation : animation
  • Vertex skinning : transform a model according to the frameworks determined by skeletal animation.
• Perform the task of transform a model space vertex data into world space.



Hull Shader

• Main function
  • Executed once per declared control point.
  • Up to 128 scalar values (float4 * 32) can be output.
  • Total output per patch cannot exceed 3968 scalars (4KB)
• Patch constant function
  • Executed once per each patch.
  • Calculate values shared by all control points of a given patch.
  • Logically calculate values that do not correspond to the attributes of each control point.
  • Need to ouptut an array of SV_TessFactor and SV_InsideTessFactor values.
  • Up to 128 scalar values (float4 * 32) can be output.
• Both functions have access to all vertices
  1. that are output by the vertex shader.
  2. that are considered to belong to a given primitive.



Fixed Function Tessellator

• Everything is fixed except for SV_TessFactor and SV_InsideTessFactor.
• The control points output by the hull shader stage are not used at all.
• The output of the tessellator is a set of weights corresponding to the primitive topology declared in the hull shader stage.



Domain Shader

• Each call in the domain shader proceeds independently of each other.
• Each call has access to all control points and patch-specific constants output by the hull shader stage.
• Create entirely new, renderable vertices using
  1. points extracted from primitives provided by the tessllator and
  2. control points provided by the hull shader.



Geometry Shader

• Know nothing about the current tessellation unless the domain shader has provided the information about the control mesh to the vertex-specific attributes.



Rasterizer and Pixel Shader

• The rasterizer has no idea that tessellation occur in the previous stages.



Parameters for Tessellation

• Measures to be considered when determining the level of amplification.
• Quality and performance : inversely proportional to each other.

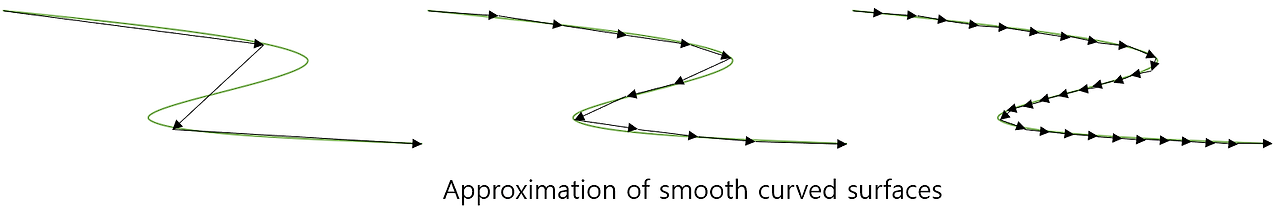

• A simple example
  • Black arrow : line segment produced by the Direct3D 11 pipeline to approximate the surface.
  • Green arrow : ideal curves for artists and designers to display on the screen.

• Definition of tessellation parameters

// Example of the patch constant function
struct HS_PER_PATCH_OUTPUT
{
    float edgeTessellation[3] : SV_TessFactor;
    float insideTessellation[1] : SV_InsideTessFactor;
};

HS_PER_PATCH_OUTPUT hsPerPatch(InputPatch<VS_OUTPUT, 3> ip, uint PatchID : SV_PrimitiveID)
{
    HS_PER_PATCH_OUTPUT o = (HS_PER_PATCH_OUTPUT)0;

    o.edgeTessellation[0]
        = o.edgeTessellation[1]
        = o.edgeTessellation[2]
        = 2.0f;
    o.insideTessellation[0] = 2.0f;

    return o;
}

// Primitives for tessellation
// Line -> SV_TessFactor : 2 / SV_InsideTessFactor : 0
struct HS_PER_PATCH_OUTPUT
{
    float edgeTessellation[2] : SV_TessFactor;
    // ...other values
};

// Triangle -> SV_TessFactor : 3 / SV_InsideTessFactor : 1
struct HS_PER_PATCH_OUTPUT
{
	float edgeTessellation[3] : SV_TessFactor;
	float insideTessellation[1] : SV_InsideTessFactor;
	// ...other values
};

// Quadrilateral -> SV_TessFactor : 4 / SV_InsideTessFactor : 2
struct HS_PER_PATCH_OUTPUT
{
	float edgeTessellation[4] : SV_TessFactor;
	float insideTessellation[2] : SV_InsideTessFactor;
	// ...other values
};



HLSL Sub-functions

• *** : Min / Max / Avg
• The last three parameters of the functions are for output.

// Apply to squares with two inside tessellation coefficients independent of each other
void ProcessQuadTessFactors***(
    float4 RawEdgeFactors,
    float InsideScale,
    float4 RoundedEdgeTessFactors,
    float2 RoundedInsideTessFactors,
    float2 UnroundedInsideTessFactors
);

// Apply to squares with two same inside tessellation coefficients
void Process2DQuadTessFactors***(
    float4 RawEdgeFactors,
    float2 InsideScale,
    float4 RoundedEdgeTessFactors,
    float2 RoundedInsideTessFactors,
    float2 UnroundedInsideTessFactors
);

// Apply to all triangles
void ProcessTriTessFactors***(
    float3 RawEdgeFactors,
    float InsideScale,
    float3 RoundedEdgeTessFactors,
    float RoundedInsideTessFactor,
    float UnroundedInsideTessFactor
);



Effects of Parameters

• If any of the coefficients for the primitive are less than or equal to 0, or NaN, the primitive is excluded from processing.
• Edge factor
  • Determine how small the edges of a primitive are to be divided.

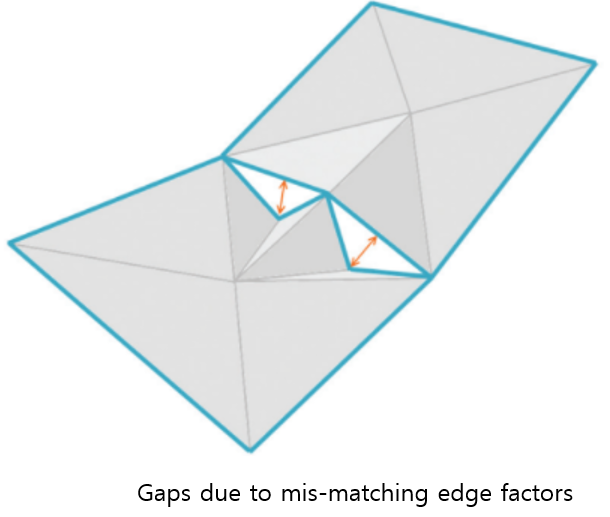

  • The tessellation coefficients of the edges shared by the two adjacent primitives should be same.
  • Water-tightness requirements
    1. Tessellator always produce the same result for the same input.
    2. On any edge, the sample positions are symmetrical with respect to the center of the edge.
  • Force adjacent fragments to use the same tessellation coefficients for the shared edge.

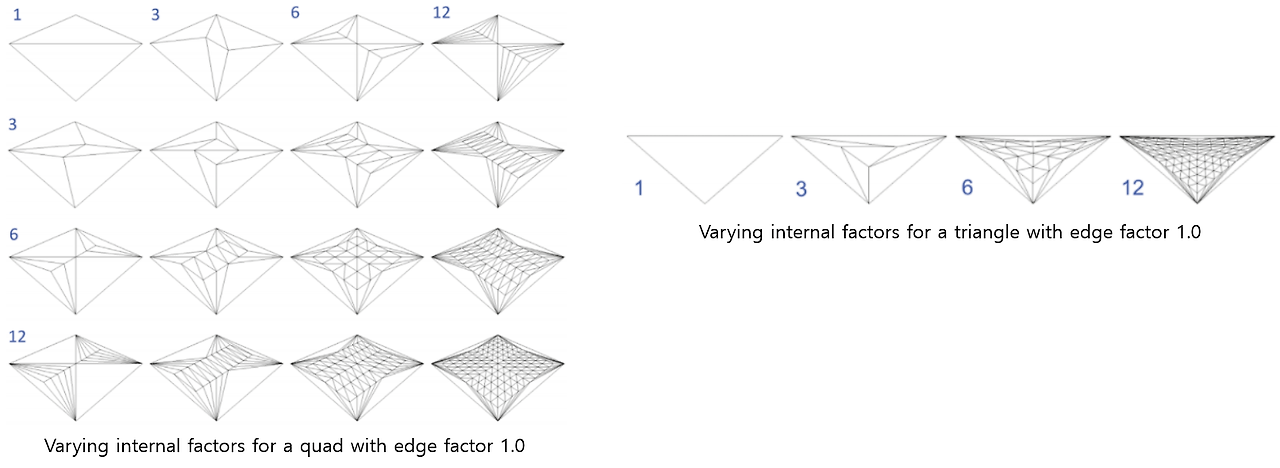

• Inside tessellation factor
  • Determine how small the inside of a primitive is to be divided.
  • The number of inside factor for quad : 2 / for triangle : 1.

• Partitioning method
  • Partitioning method is specified as a attribute of the main function of the hull shader.
  • The value specifying the partitioning method is declared as a compile-time constant, so that it will be the same for all patches being rendered with this particular hull shader.
  • The factors are specified as float values by the constant function.
    1. integer : round up all floaintg-point values up to their nearest integer in 1 ~ 64.
    2. fractional_even : round up to the nearest even number in 2 ~ 64. (2, 4, 6, 8, 10, ...)
    3. fractional_odd : round up to the nearest odd number in 1 ~ 64. (1, 3, 5, 7, 9, ...)
    4. pow2 : round up according to the $2^n$ series. (n : 0 ~ 7)

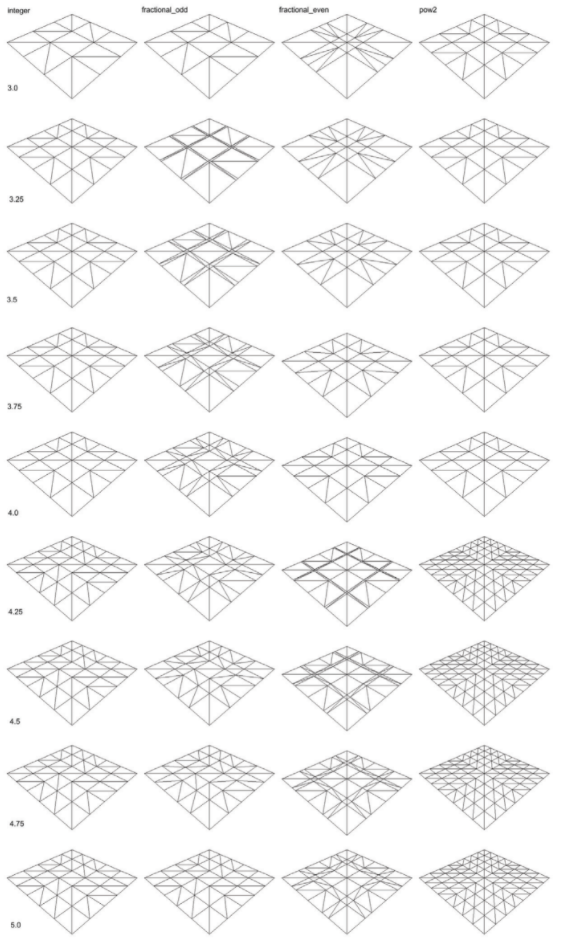

The result of tessellation according to partitioning method

• LOD transitions and the risk of popping
  • Popping : a sudden jump where new geometry is added to the final output.
  • Popping can be very noticeable to the viewer.
  • Temporal considerations are important as this visual artifact is almost always caused by inputs changing through time. (across multiple frames in an animation)
  • Important to think about the selection of tessellation factors with regard to how they change through time, rather than as a single, isolated per-frame factor.
