  • The Rendering Pipeline - Before Tessellation
    CS/게임 프로그래밍 2024. 2. 4. 22:25

    Input Assembler

    Input of Input Assembler

    • Vertex buffer : there are a total of 16 input slots that the application can set.
    void ID3D11DeviceContext::IASetVertexBuffers(
    // A index of the first slot to connect resources among vertex buffer slots
        UINT StartSlot,
    // The total number of buffers to be connected to slots
        UINT NumBuffers,
    // A continuous array of pointers indicating buffer resources to be connected
        ID3D11Buffer* const *ppVertexBuffers,
    // A stride for each vertex buffer, which means the distance from the vertex to the next vertex
        const UINT *pStrides,
    // Offsets to designate the location of the vertex to be used for the first time
        const UINT *pOffsets
    );
    • Index buffer : there are a total of 1 input slots that the application can set.
    void ID3D11DeviceContext::IASetIndexBuffer(
    // A pointer indicating the index buffer
        ID3D11Buffer* pBuffer,
    // The format of the index stored in the buffer
        DXGI_FORMAT Format,
    // The offset of the first index to be used to create a basic figure in the index buffer
        UINT offset
    );
    • Disconnect the buffer : call the same method by setting the NULL pointer value in the input slot.



    Status Description of Input Assembler

    • Input layout object : make vertex streams.
      • Define how attributes of vertices are placed in memory.
      • Specify the compiled shader byte code when creating the input layout object.
        1. To ensure that the vertices assembled by the input assembler match the vertices required to execute the vertex shader program.
        2. The burden of verifying the validity of the shader is reduced at runtime.
    struct D3D11_INPUT_ELEMENT_DESC {
    // Fields for data by vertex
        LPCSTR SemanticName;
        UINT SemanticIndex;
        DXGI_FORMAT Format;
        UINT InputSlot;
        UINT AlignedByteOffset;

    // Fields for each instance
        D3D11_INPUT_CLASSIFICATION InputSlotClass;
        UINT InstanceDataStepRate;
    };
    • Primitive topology : make primitive streams.
      • Provide a method of creating various basic figures from the assembled vertex stream.
        1. Point list
        2. Line list / line strip
        3. Triangle list / triangle strip
        4. Topology including adjacent basic figure information
        5. Control point patch list



    Process of Input Assembler

    • Basic draw method
      • Construct vertices based on a given input layout. (vertex stream)
      • Refine the vertex stream to create primitives. (primitive stream)
      • The most basic vertex and primitive construction process.
    • Indexed draw method
      • The vertices used to construct the primitives are determined by the indices.
    • Instanced draw method
      • The vertex and index stream are repeated for each instance of the model. (object)
      • Vertex components for each instance are updated each time one instance is completed.
      • The number of instances is determined by the parameters given to the draw method call.
    • Indirect draw method
      • Parameters of the draw method are indirectly specified through buffer resources rather than directly specified in code.
      • To dynamically control the rendering method by filling the input parameter buffer in the GPU.



    Output of Input Assembler

    • The array of input layout must match the input signature declared on the vertex shader.
    • Examples of input signature
      • float3 position : the position of the input vertex
      • float3 normal : the normal vector of the input vertex
      • float3 tangent : the tangential vector of the input vertex
      • float3 bitangent : the overlapping
      • float4 boneIDs
      • float4 boneWeight
    • System value semantics
      • SV_VertexID : unsigned interger; a means of simply identifying individual vertices in subsequent stages.
      • SV_PrimitiveID : a means of identifying each primitives of a primitive stream.
      • SV_InstanceID : a means of identifying each instance of the geometry in an instnaced draw method.



    Vertex Shader

    Input of Vertex Shader

    • Assembled vertices that meet the format required by the vertex shader program.
    • Input signature set by input layout object : ID3D11InputLayout
    • System value semantics : SV_VertexID, SV_InstanceID



    Status Description of Vertex Shader

    // Set a shader program to the vertex shader
    void ID3D11DeviceContext::VSSetShader(
    // Pointer to a vertex shader
    // Passing in NULL disables the shader for this pipeline stage
        ID3D11VertexShader *pVertexShader,
    // A pointer to an array of class-instance interfaces
        ID3D11ClassInstance * const *ppClassInstances,
    // The number of class-instance interfaces in the array
        UINT NumClassInstances
    );
    // Get the shader program currently set on the vertex shader
    void ID3D11DeviceContext::VSGetShader(
        ID3D11VertexShader **pVertexShader,
        ID3D11ClassInstance **ppClassInstances,
        UINT *pNumClassInstances
    );
    • Constant buffer : useful when trying to convey unchanged values throughout one pipeline execution to the shader program.
    // Set the constant buffers used by the vertex shader pipeline stage
    void ID3D11DeviceContext::VSSetConstantBuffers(
        UINT StartSlot,
        UINT NumBuffers,
        ID3D11Buffer * const *ppConstantBuffers
    );
    • Shader resource veiw : the resources must be connected to the vertex shader stage using the shader reousrce view to access read-only resources in the vertex shader program.
    // Bind an array of shader resources to the vertex shader stage
    void ID3D11DeviceContext::VSSetShaderResources(
        UINT StartSlot,
        UINT NumViews,
        ID3D11ShaderResourceView * const * ppShaderResourceViews
    );
    • Sampler status object : provide the ability to perform various filtering operation when reading texels from a texture resource
    // Set an array of sampler states to the vertex shader pipeline stage
    void ID3D11DeviceContext::VSSetSamplers(
        UINT StartSlot,
        UINT NumSamplers,
        ID3D11SamplerState * const *ppSamplers
    );



    Process of Vertex Shader

    • Geometric manipulation
      • Apply the transformation matrix to the vertex position.
      • Vertex skinning
    • Per-vertex lighting
      • Efficient because of calculating the illumination formula for vertices, not for every pixel.
      • Cover the defects caused by the low resolution of the calculation, since the calculated values are subsequently interpolated between the vertices.
    • General per-vertex calculation
      • Beneficial to perform the calculation in the vertex shader stage, if it is okay to use the value obtained by interpolating data for each vertex in pixel-level processing.
      • Per-vertex calculation = per-pixel calculation if given calculation is a linear combination of inputs.

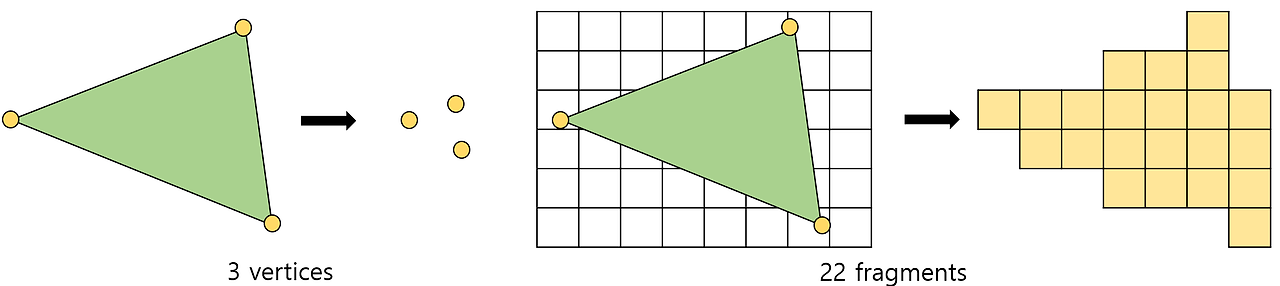

    The computational difference between Vertexs and Fragments

    • Control patch
      • Deal with the control points of the higher order primitive (control patch), not the vertex.
      • The control points are evaluated in the tessellation stage to produce vertices that actually define the geometric surface of the mesh.
    • Vertex caching
      • Several primitives can share the results of processing one vertex.
      • Caching operations depend on the hardware. (GPU)
      • Important to ensure that shared vertices are referenced as close as possible within vertex input data.



    Output of Vertex Shader

    • Stages to be connected
      1. Tessellation stages : control points must be provided in the hull shader stage.
      2. Geometry shader
      3. Rasterizer : the final clipping space position should be included in the SV_Position
    • SV_Position
      • The final location of the clip space position.
      • The last activation stage prior to the rasterizer must provide a SV_Position
    • SV_ClipDistance[n], SV_CullDistance[n]
      • All previous stages of the rasterizer, including the vertex shader, can change the values.
      • Used in the rasterizer to perform clipping and culling operations.
      • Up to two can be used in one pipeline, combining the clipping and culling semantics.
