Process Scheduling 2

Terminologies

• Burst (time)
  • CPU burst : time it takes for CPU to execute an operation.
  • I/O burst : time it takes for the CPU to wait for I/O.
• CPU-I/O burst cycle
  • Each process execution consists of a cycle of CPU execution and I/O wait.
  • Alternating CPU and I/O bursts.
• Processes can be described as
  • I/O-bound process : I/O-intensive (CPU burst < I/O burst)
  • CPU-bound process : CPU-intensive (CPU burst > I/O burst)



Scheduling Criteria

System

• CPU utilization : keep the CPU as busy as possible.
• Throughput : # of processes that complete their execution per time unit.



Process

• Turnaround time
  • Amount of time to execute a particular process.
  • Completion of process - arrival of process (Waiting time + CPU burst time)
• Waiting time : amount of time a process waiting in the ready queue.
• Response time
  • Amount of time it takes from when a request was submitted until the first response is produced.
  • New -> Ready -> Running time



Optimization criteria

• Maximize CPU utilization.
• Maximize throughput.
• Minimize turnaround time, waiting time, response time.
• Maxmize deadline.
• Minimize fairness.
• Minimize scheduling overhead.



Which metrics are important?

• Super computer : CPU utilization, throughput
  • Large, long running jobs submitted by user.
  • Probably has lots of CPU hungry tasks, not much I/O.
• Personal computer : turnaround time, waiting time, response time
  • Human like interactivity on desktop.
  • Frequently waiting on I/O to make progress.
• Embeded system : deadline
  • Emphasize rapid interrupt handling and task dispatching.
  • A mixed of criticality.
• Server computer for cloud server : fairness
  • Ensure each task receive the CPU resource in proportion its share.



Virtual Round Robin

Cycle of virtual round robin

• Reduce the bias in favor of longer process. (기존 Round Robin의 단점)
  • Short Process를 우대하는 방식
• CPU-bound processes generally uses a complete time quantum.
  • Immediately returns to the ready queue.
• Processes in the auxiliary queue (generally I/O-bound processes) get preference.



Multi-Level Feedback Queues

Multilevel Queue

• Ready queue is partitioned into separate queue.
  • Process마다 Class 존재.
  • Foreground : interactive (generally I/O-bound)
  • Background : batch (generally CPU-bound)
• Queue 내부적인 scheduling / Queue끼리의 scheduling
• Starvation can occur because of fixed priority.



Multilevel Feedback Queue

Cycle of Multilevel Feedback Queue

• Scheduling algorithm for each queue
  • Foreground : RR
  • Background : FIFO
• Migration : queue 간의 process 이동 가능.
  • Promote by aging : starvation 해결.
  • Demote by using all time quantum : long process에 penalty 부여.
• Multilevel Feedback Queue scheduler defined by the following parameter.
  • Number of queue
  • Scheduling algorithms for each queue
  • Method used to determine which queue a process will enter
  • Method used to determine when to upgrade / demote a process



Multiprocessor Scheduling

Multiprocessor Scheduling

• Uniprocessor scheduling (time domain) : decide when and which job will run.
• Multiprocessor scheduling (time domain + space domain) : decide not only when but also where a job will run.
  • How to maintain the ready queue?
  • How to define and exploit affinity?
  • How to assign applications to multiple processors?
  • How to manage processor heterogeneity (이질성) ?
  • How to balance workload among processor?



HW Issue

• Symmetric multiprocessing (SMP) / Asymmetric multiprocessing : master - slaves relationship
• Cache (processor) affinity : an behavior that have better performance due to the effect of cache when executed on the previously executed CPU
  • Soft affinity : affinity 관계가 보장이 안 될 수도 있음.
  • Hard affinity : not to migrate to other processors.
• Load balancing
  • Push migration : 감시자 process가 시스템 상 하나 존재하여 다른 CPU로 process를 보냄.
  • Pull migration : 각 CPU마다 감시자 process가 존재하여 다른 CPU에서 process를 가져옴.



SW Issue

• Concurrency (synchronization problem) : maximize parallelism.
• When accessing shared data across CPUs, mutual exclusion primitives should likely be used to guarantee correctness (race condition)



Single Queue Multiprocessor Scheduling; SQMS

• Simply reuse the basic framework for single processor scheduling.
• Advantage : simplicity
• Disadvantage
  • Cache affinity
  • Some form of locking have to be inserted (lack of scalability)



Multi Queue Multiprocessor Scheduling; MQMS

• The basic scheduling framework consist of multiple scheduling queues.
• Avoid the problems of synchronization.
• Provide more scalabiltiy and cache affinity.
• Disadvantage : load imbalance



MQMS Migration

• Work stealing
  • Look around at other queues too often : high overhead
  • Do not look around at other queues too often : suffer from load imbalances
• Finding the right threshold.



Proportional Share Scheduling

$O(1)$ Scheduler

• Basic concept
  • A priority-based scheduler (RTOS, Linux 2.5)
  • Two run queues (active / expired run queue)
  • Each run queue consists of linked lists for priority levels.
  • Insert, delete, find operation : $O(1)$
  • Disadvantage : starvation
• Algorithm
  • Scheduler inserts each runnable task into active run queue.
  • Whenever the task runs out of its time slice, it will be removed from active run queue, and inserted into expired run queue.
  • If an active run queue becomes empty, the run queue and expired run queue swap pointers.

Proportional Share Scheduling

• Basic concept
  • A weight value is associated with each process.
  • The CPU is allocated to the process in proportion to its weight.
• Two contexts
  • Fair queueing (in the context of networks)
  • Proportional share (in the context of OS) -> bandwidth scheduler, fair-share
• Optimization criteria
  • Proportional fairness accuracy : minimize service time error
  • Scheduling overhead : execution time of the scheduling algorithm

Calculation of service time error

• WFQ (Weighted Fair Queueing)
  • Select smallest value of virtual finish time.
  • Virtual Time (VT) : (actually allocated time) / (weight of the process)
  • Virtual Finish Time (VFT) : (virtual time) + 1 / (weight of the process)
  • Guarantee - 0.9 $\le$ (service time error) $\le$ 1.2

• WRR (Weighted Round Robin)
  • 기존 Round Robin에 가중치를 추가

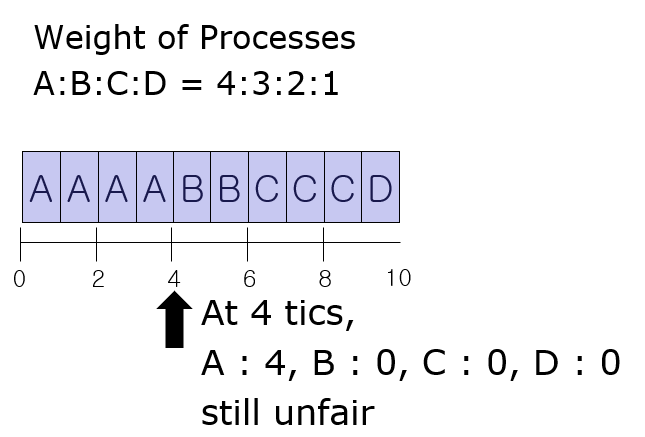

  • 임의의 시간에서 (Ex. 4 tics) 여전히 불공평의 가능성 존재
  • Process switch overhead가 발생하지만 WFQ가 훨씬 공평

• CFS (Completely Fair Scheduler)
  • Merged into the 2.6.23 release of the Linux kernel.
  • Multiple queues, similar design to WFQ.
  • Select the task which has the smallest value of virtual runtime.
  • If vruntime of processes are same, compare weight or delta_exec.
  • vruntime += (NICE_0_LOAD) / se -> load.weight) * delta_exec
  • weight up -> vruntime down -> priority up
  • delta_exec up -> vruntime up -> priority down



Linux Schedulers

Different Priorities

• 100 ~ 139 : conventional class -> SCHED_NORMAL
• 0 ~ 99 : real-time class -> SCHED_FIFO, SCHED_RR



Scheduling of Real-Time Processes

• To lower CPU burst : priority based
• Rate Monotonic : 주기가 짧을수록 우선순위 상승 -> static
  • n개의 프로세스가 있고 , CPU 사용율의 상한선 U이라고 할 때 아래 식이 성립할 경우 스케줄링 가능
    $$U \ = \ \sum_{i=1}^n {C_i \over T_i} \ \le \ n(\sqrt[n] {2} \ - \ 1)$$
• Earliest Deadline First (EDF) : deadline까지 가장 조금 남은 Process의 우선순위 상승 -> dynamic
  • 사용율의 상한은 1로 고정, CPU 사용율이 1보다 작을 경우 스케줄링 가능
  • 수학적으로 최적의 알고리즘, but impratical
